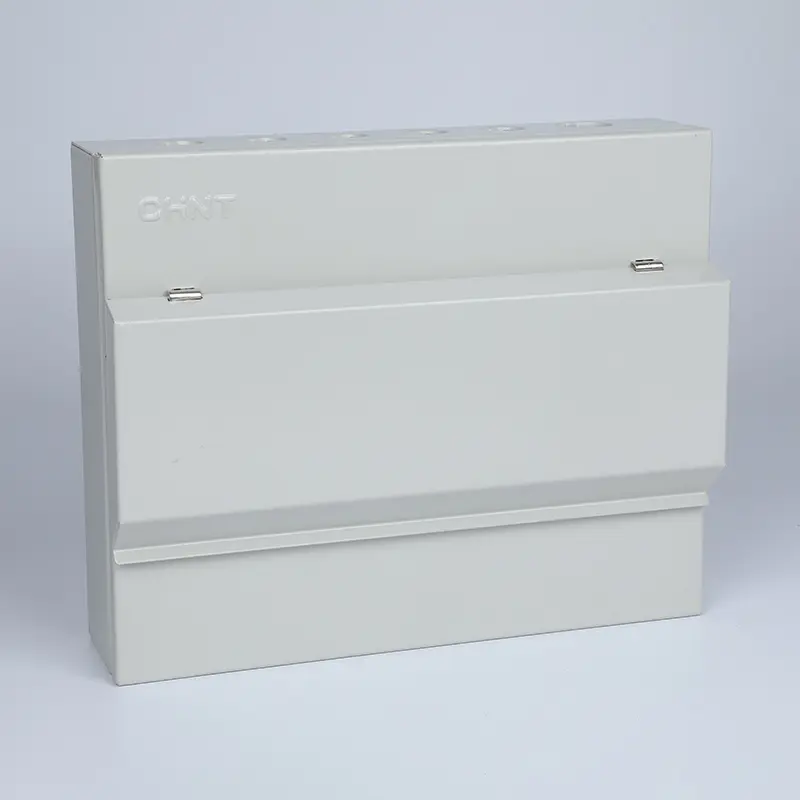

Your are here:Home > Products > Distribution Board > UDB-N SERIES 1 PHASE DISTRIBUTION BOX (IP40)
The electrical panel is like the heart of your home’s electrical system.
The electrical system in your home operates just like a human body. Like veins and arteries carry blood to organs and limbs, circuits and wires carry electricity throughout the home. Blood keeps our bodies alive; electricity keeps our homes running. The heart must be healthy in order for blood to travel around the body; the electrical panel of our home must operate properly for electricity to flow safely throughout the home. To enjoy the comforts of television, computers and refrigerators (to name a few), we must maintain a properly functioning electrical panel.
1. Steel sheet and copper fittings inside;
2. Paint finish: Both externally and internally;
3. Protected with epoxy polyester coating;
4. Textured finish RAL7032 or RAL7035 .
More than 20 years;
Our products are accord with IEC 60947-3 standard.
| Model | No.of ways | Size of surface type (mm) | Size of flush type (mm) | ||||
| W | H | D | W | H | D | ||
| UDB-N | 6 ways | 208 | 230 | 90 | 221 | 243 | 90 |
| UDB-N | 8 ways | 244 | 230 | 90 | 257 | 243 | 90 |
| UDB-N | 10 ways | 280 | 230 | 90 | 293 | 243 | 90 |
| UDB-N | 12 ways | 316 | 230 | 90 | 329 | 243 | 90 |
| UDB-N | 14 ways | 352 | 230 | 90 | 365 | 243 | 90 |
| UDB-N | 16 ways | 388 | 230 | 90 | 401 | 243 | 90 |
| UDB-N | 18 ways | 424 | 230 | 90 | 437 | 243 | 90 |
| UDB-N | 20 ways | 460 | 230 | 90 | 473 | 243 | 90 |
| UDB-N | 22 ways | 496 | 230 | 90 | 509 | 243 | 90 |
